High Accuracy HPLC Golden Standard Efficient Diabetes Diagnosis Automated HbA1c Analyzer

Name: High Accuracy HPLC Golden Standard Efficient Diabetes Diagnosis Automated HbA1c Analyzer
Brand: LABNOVATION
Price: 5000 USD

China High Accuracy HPLC Golden Standard Efficient Diabetes Diagnosis Automated HbA1c Analyzer wholesale

Brand Name : LABNOVATION

Model Number : LD-560

Certification : IFCC, NGSP, CE

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : US$5000-12000/Piece

Payment Terms : D/A, D/P, T/T

Supply Ability : 100 Units/Day

Delivery Time : 5-7 work day

Packaging Details : Carton

Method : HPLC (High Performance Liquid Chromatography)）

Certificated : NGSP, IFCC, CE

Parameters : HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional)

WaveLength : 420nm

Report Range : 3-18%

Sample Capacity : 20 Samples

Contact Now

LD-560 HPLC System for HbA1c Testing

The Fully Automated HbA1c Analyzer is used in conjunction with suitable reagents for the quantitative detection of glycosylated hemoglobin

(HbA1c) in human blood.

Positioning:10-30 daily sample

Test Speed: Within 90s/T

High Accuracy HPLC Golden Standard Efficient Diabetes Diagnosis Automated HbA1c Analyzer

Principle

Using high performance liquid chromatography (HPLC), the stationary phase used is a weakly acidic cation exchanger. Glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin without being charged, and non glycosylated hemoglobin has a positive charge. According to the different charged properties of hemoglobin, eluents with different pH values and ionic strengths are used sequentially, and several hemoglobin components including HbA1c are separated by high performance liquid chromatography. Each component is detected by a single wavelength colorimeter, and the detected data is processed by a computer to calculate the percentage content of HbA1c in the total
hemoglobin.

Specification

Model	LD-560
Method	HPLC
Parameters	HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional)
Test Speed	90 seconds per test
Reagents kit	Eluent A, Eluent B, Hemolysis
Autoloader Capacity	20 tubes
Precision	CV＜2%
Dimension	378(L) ×380(W)×510(H)mm
Weight	28kg
Column Capaticy	3000 Tests
Report Range	3%-18%
Working Condition	Temperature: 15-30℃ Humidity:30%-85%
Voltage	100-240VA
Frenquency	50/60Hz
Dimension	610(L) ×435(W)×H425(H)mm

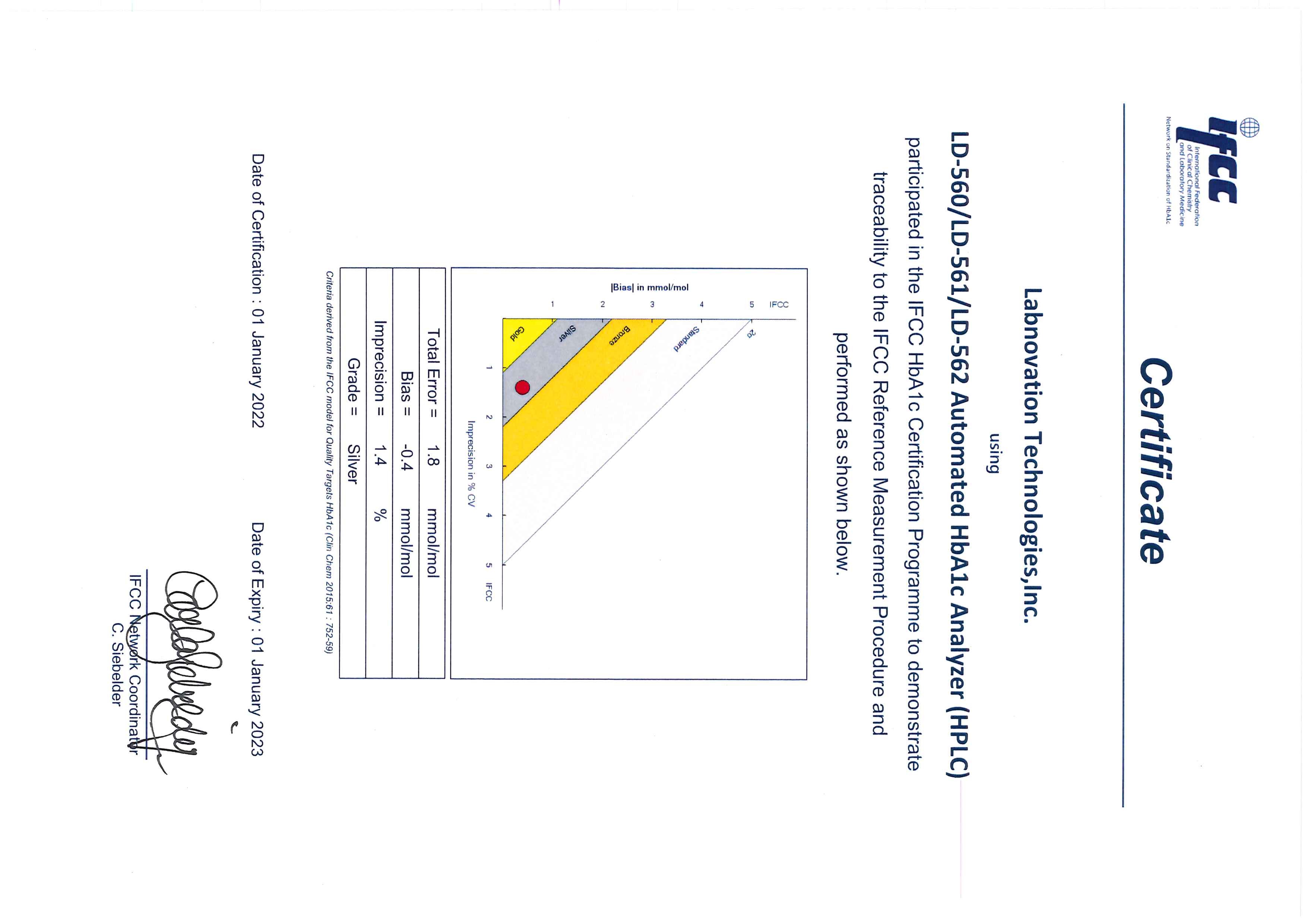

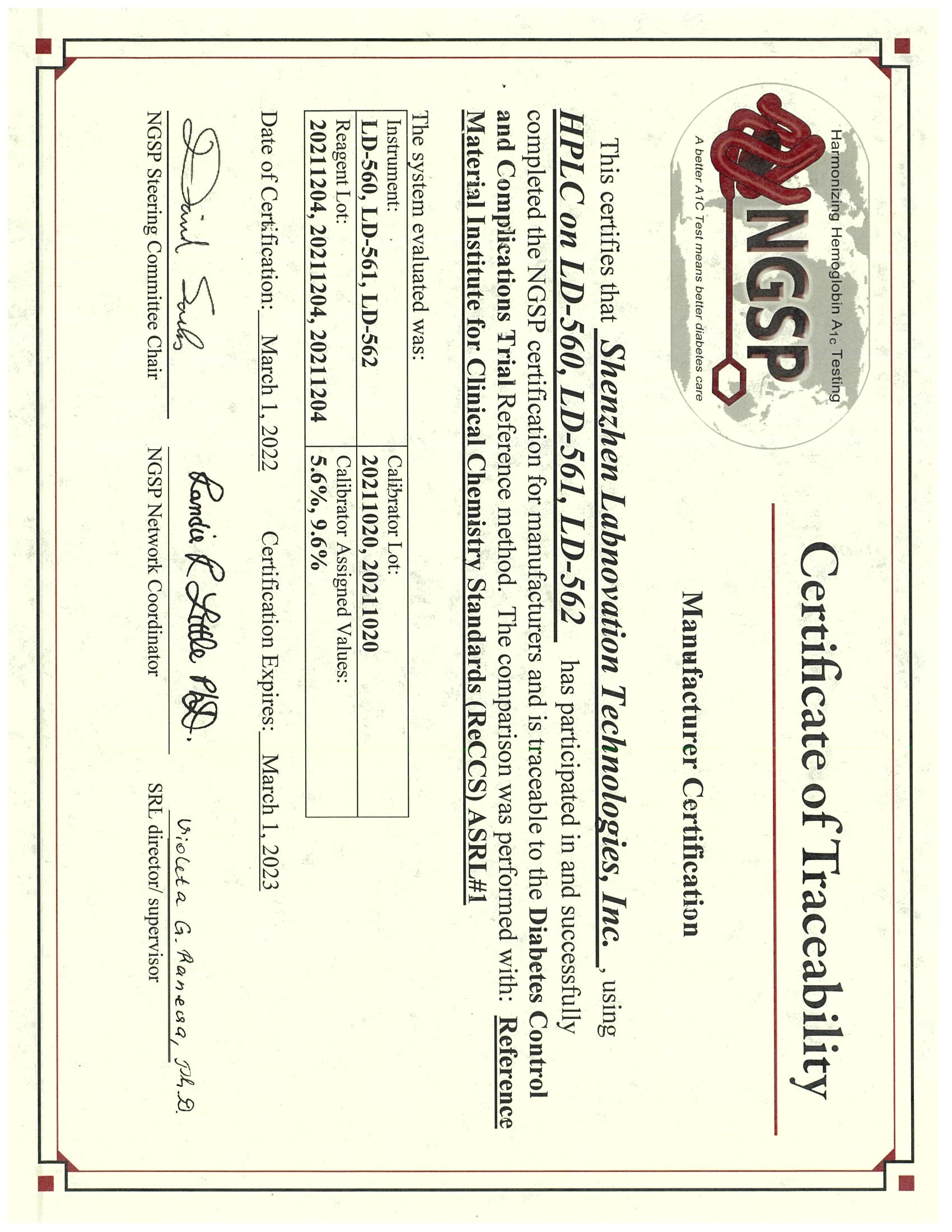

Certificate

High Accuracy HPLC Golden Standard Efficient Diabetes Diagnosis Automated HbA1c Analyzer
